pH kit ISFET pH sensor module

The conditions for purchases, deliveries and returns are described in our Terms and Conditions.
  • Article number: A120-001
  • ISFET (Ion Sensitive Field Effect Transistor) pH sensor: glass-free, robust and dry storage capabilities
  • PT1000 temperature sensor
  • This module is to be wired directly to the pH kit Analog Front-end module

Probably also good to add

247.00

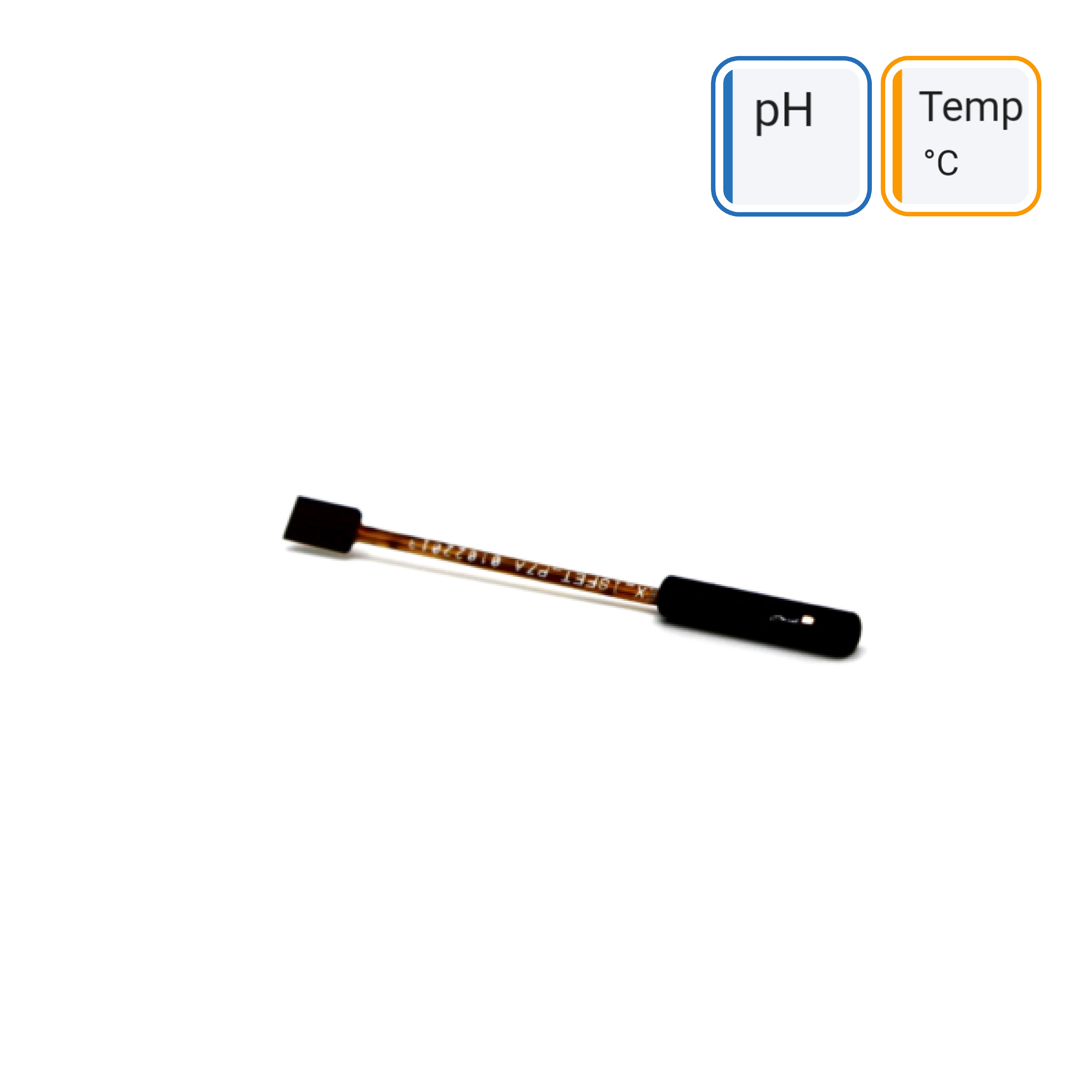

The ISFET pH sensor module contains a PT1000 temperature sensor in addition to the ISFET pH sensor chip. To be used with at least the pH-kit reference electrode and the pH-kit Analog Front-end module.

Please check our technical guide before use.

You may also like…

Download Leaflet
Category: SKU: A120-001

Description

pH kit ISFET pH sensor module

247.00

Download Leaflet
pH kit ISFET pH sensor module

247.00

Download Leaflet

Wireless and durably interchangeable

Wireless and durably interchangeable, our premium pH probe enables you monitor this essential parameter in whatever application, whenever you want, wherever you are.

Frequently Asked Questions

Thanks to the ISFET technology the pH sensors are robust and can be stored dry. This has a great benefit for applications like water quality measurements in stream beds and tidal areas, where the water level changes in time and the probe will occasionally be above the water level.

The glass-free approach makes the pH also available for inline food processes and medical applications like gastro-enterology, for which any glass splinter could be fatal.

The new product line is a wireless product line. No cable and thus more flexibility. No limitation of 1 probe per meter at a maximum 1,5 meter distance anymore! The Bluetooth connection enables you to have several meters within the mobile and the probe. Unlimited numbers of probes can be connected and read out simultaneously. Additionally the features of your phone can be used: GPS, social media, cloud service, etc.

Additionally we’ll release a multisensor on the market in the near future. This probe for pH, EC and ORP can be added up to the number of probes connected to your mobile device.

The connection between the probe (/transmitter) and the mobile phone is dependent on the Bluetooth signal. We have used a powerful approach for this, enabling a distance of maximum XX meter through the air.

Let’s get connected and see whether we have a match. Please refer to sensorsolutions@wellinq.com / info@sentron.nl and we’ll contact you as soon as possible.

Besides the standard product line we are also providing contract development and contract manufacturing of sensor assemblies. More information on this is provided at Sensor Integration Services

Additional information

Categorie

Benchtop, R&D evaluation pH kit

Parameter

pH (ISFET)
