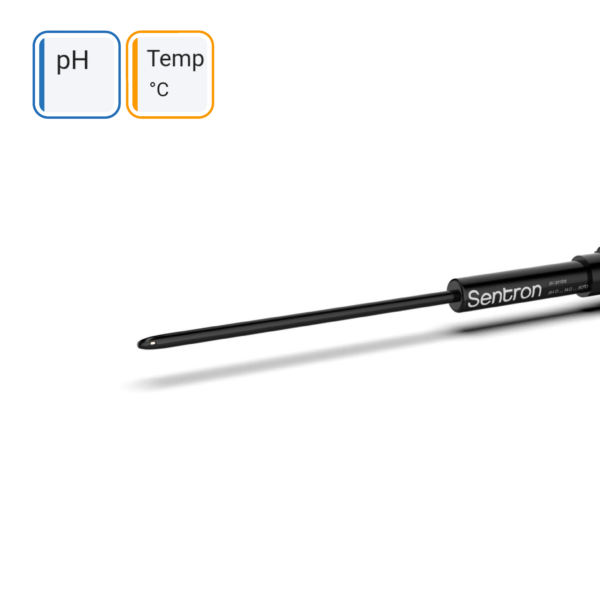

Replaceable sensor part for pH MicroFET

The conditions for purchases, deliveries and returns are described in our Terms and Conditions.

The package includes:

  • Sensor part for MicroFET
  • Ring

You would need to gather yourself (or purchase separately in the shop):

PS See our manual how to complete the pH probe with this sensor part and to get started for your pH measurements.

Replaceable pH MicroFET:

  • Replaceable part with 3 mm diameter barrel that fits in test tubes and mini-cuvettes.

Replaceable MicroFET pH sensor part:

  • Article number: 9370-005
  • Sensor part with 3 mm diameter barrel that fits in test tubes and mini-cuvettes
  • Height of sample should be 8 mm minimum
  • Length of this replaceable (c.q. immersible) sensor part is 110 mm. Total length of probe will be 252 mm
  • ISFET (Ion Sensitive Field Effect Transistor) pH sensor: glass-free, robust and dry storage capabilities
  • Gel-filled reference chamber for stable and accurate pH measurements
  • ATC, Automatic Temperature Compensation thanks to integrated NTC temperature sensor in the tip
  • Durable: this replaceable sensor part is easily interchangeable from the probe by plug and screw
  • IP67 dust and waterproof

See the specification table in our wireless ISFET pH probe manual for all specifications.


Replaceable and easy interchangeable sensor part of the MicroFET pH probe: the laboratory probe for wireless, durable, non-glass pH measurements. Its very small 3 mm diameter enables fit in test tubes and mini-cuvettes.

The sensor part includes the ISFET sensor, reference electrode as well as an integrated temperature sensor for automatic temperature compensation (ATC). Check the manual on how to complete your full wireless ISFET pH probe with this sensor part: manuals and technical guides.

You may also like…

Download Leaflet
Category: SKU: 9370-005


Replaceable sensor part for pH MicroFET


Download Leaflet

Wireless and durably interchangeable

Wireless and durably interchangeable, our premium pH probe enables you monitor this essential parameter in whatever application, whenever you want, wherever you are.

Frequently Asked Questions

Thanks to the ISFET technology the pH sensors are robust and can be stored dry. This has a great benefit for applications like water quality measurements in stream beds and tidal areas, where the water level changes in time and the probe will occasionally be above the water level.

The glass-free approach makes the pH also available for inline food processes and medical applications like gastro-enterology, for which any glass splinter could be fatal.

The new product line is a wireless product line. No cable and thus more flexibility. No limitation of 1 probe per meter at a maximum 1,5 meter distance anymore! The Bluetooth connection enables you to have several meters within the mobile and the probe. Unlimited numbers of probes can be connected and read out simultaneously. Additionally the features of your phone can be used: GPS, social media, cloud service, etc.

Additionally we’ll release a multisensor on the market in the near future. This probe for pH, EC and ORP can be added up to the number of probes connected to your mobile device.

The connection between the probe (/transmitter) and the mobile phone is dependent on the Bluetooth signal. We have used a powerful approach for this, enabling a distance of maximum XX meter through the air.

Let’s get connected and see whether we have a match. Please refer to / and we’ll contact you as soon as possible.

Besides the standard product line we are also providing contract development and contract manufacturing of sensor assemblies. More information on this is provided at Sensor Integration Services

Additional information


Benchtop, Handheld, Accessories




Laboratory, Industrial, Environment
