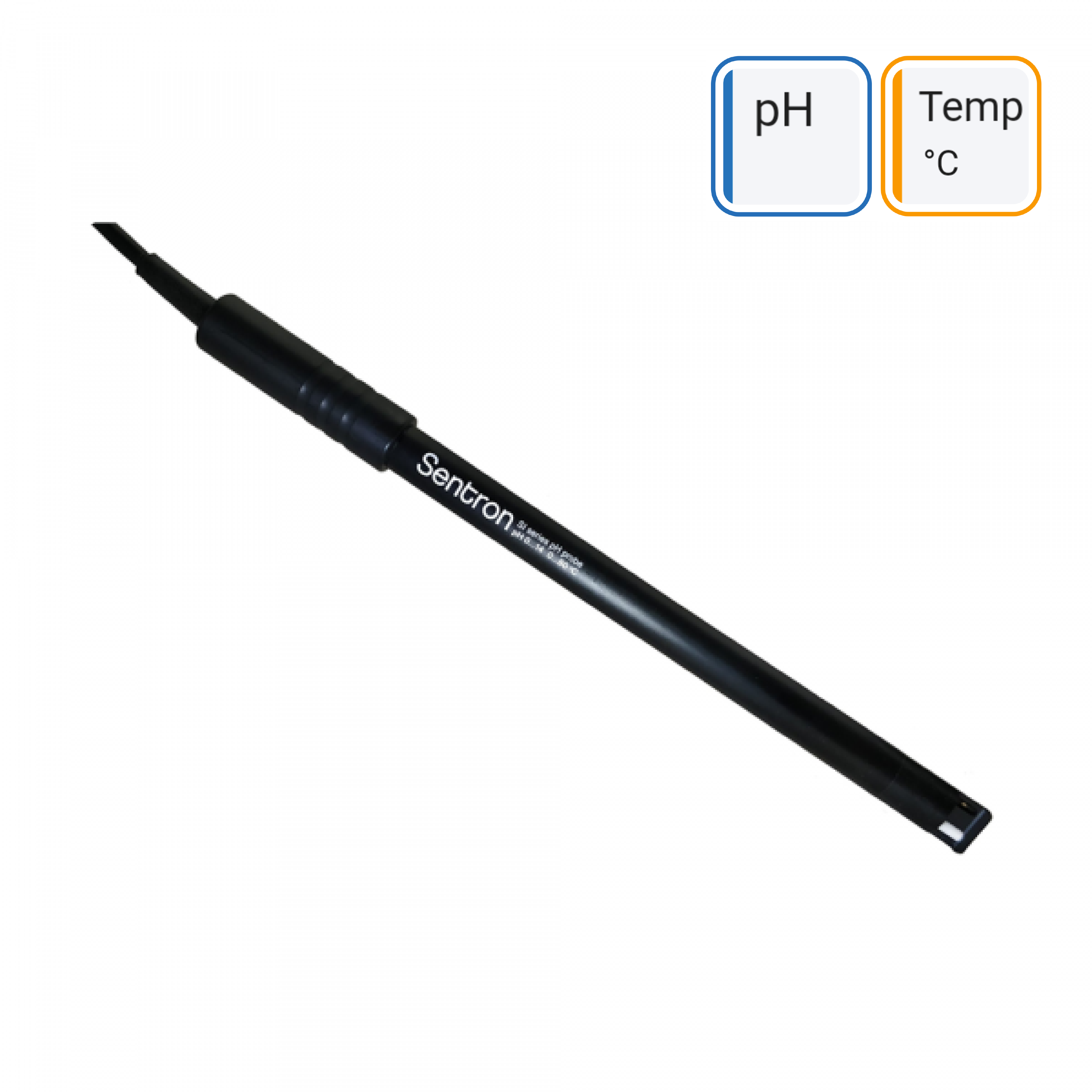

SI serie CupFET pH/T probe

The conditions for purchases, deliveries and returns are described in our Terms and Conditions.

The package includes:

  • (Wired) Sentron SI CupFET pH/T probe
  • Toothbrush for cleaning purposes

You would need to gather yourself (or purchase separately in the shop):

  • pH buffers
  • Demineralized water
  • Eventually some labware like beakers and tissues

SI serie CupFET pH/T Probe

  • Article number: 3200-010
  • (Wired) probe for measurements of small liquid amounts like one droplet
  • ISFET sensor for pH measurements: robust and dry storage capabilities
  • Gel-filled reference chamber for stable and accurate pH measurements
  • ATC, Automatic Temperature Compensation for the calibration procedure thanks to integrated temperature sensor in the tip
  • To be connected to the (obsolete) SI meter by 1,5 meter cable before use

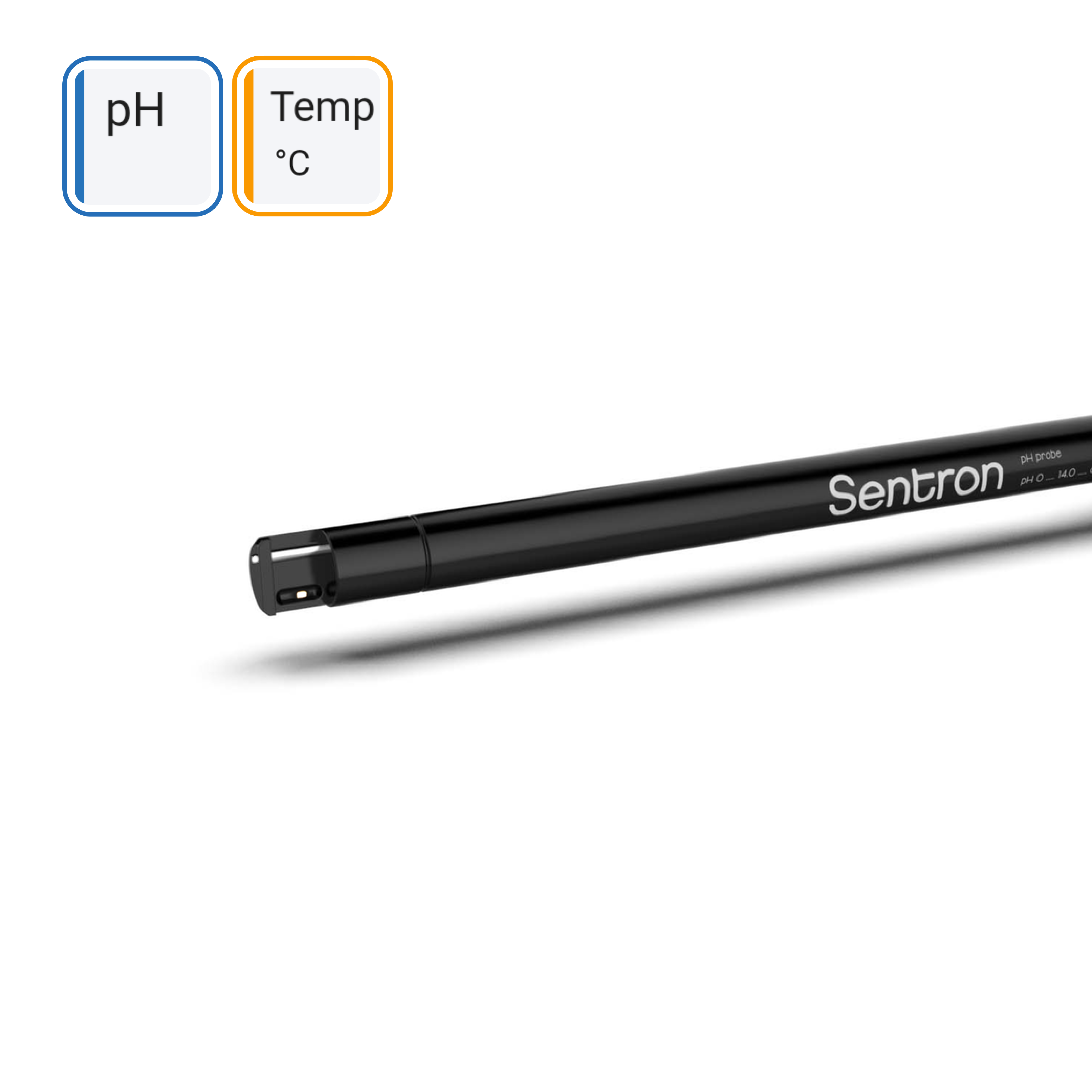

  • The successor for this wired probe is the CupFET pH Probe.
See our SI serie CupFET probe leaflet for all specifications.

Probably also good to add

404.00

SI serie CupFET probe: Small volume probe for non-glass pH measurements of small liquid amounts like one droplet.

The probe is to be connected by cable to either the SI400 or SI600 Sentron pH meter.

NB These meters are out of stock and not for sale anymore. The successor of these meters are the wireless pH probes that are connected by Bluetooth to any smartphone or tablet, iOS or Android.

You may also like…

Category: SKU: 3200-010 Tags:

Description

SI serie CupFET pH/T probe

404.00

Frequently Asked Questions

Thanks to the ISFET technology the pH sensors are robust and can be stored dry. This has a great benefit for applications like water quality measurements in stream beds and tidal areas, where the water level changes in time and the probe will occasionally be above the water level.

The glass-free approach makes the pH also available for inline food processes and medical applications like gastro-enterology, for which any glass splinter could be fatal.

The new product line is a wireless product line. No cable and thus more flexibility. No limitation of 1 probe per meter at a maximum 1,5 meter distance anymore! The Bluetooth connection enables you to have several meters within the mobile and the probe. Unlimited numbers of probes can be connected and read out simultaneously. Additionally the features of your phone can be used: GPS, social media, cloud service, etc.

Additionally we’ll release a multisensor on the market in the near future. This probe for pH, EC and ORP can be added up to the number of probes connected to your mobile device.

The connection between the probe (/transmitter) and the mobile phone is dependent on the Bluetooth signal. We have used a powerful approach for this, enabling a distance of maximum XX meter through the air.

Let’s get connected and see whether we have a match. Please refer to sensorsolutions@wellinq.com / info@sentron.nl and we’ll contact you as soon as possible.

Besides the standard product line we are also providing contract development and contract manufacturing of sensor assemblies. More information on this is provided at Sensor Integration Services

Additional information

Categorie

SI pH probes (obsolete)

Parameter

pH (ISFET)
