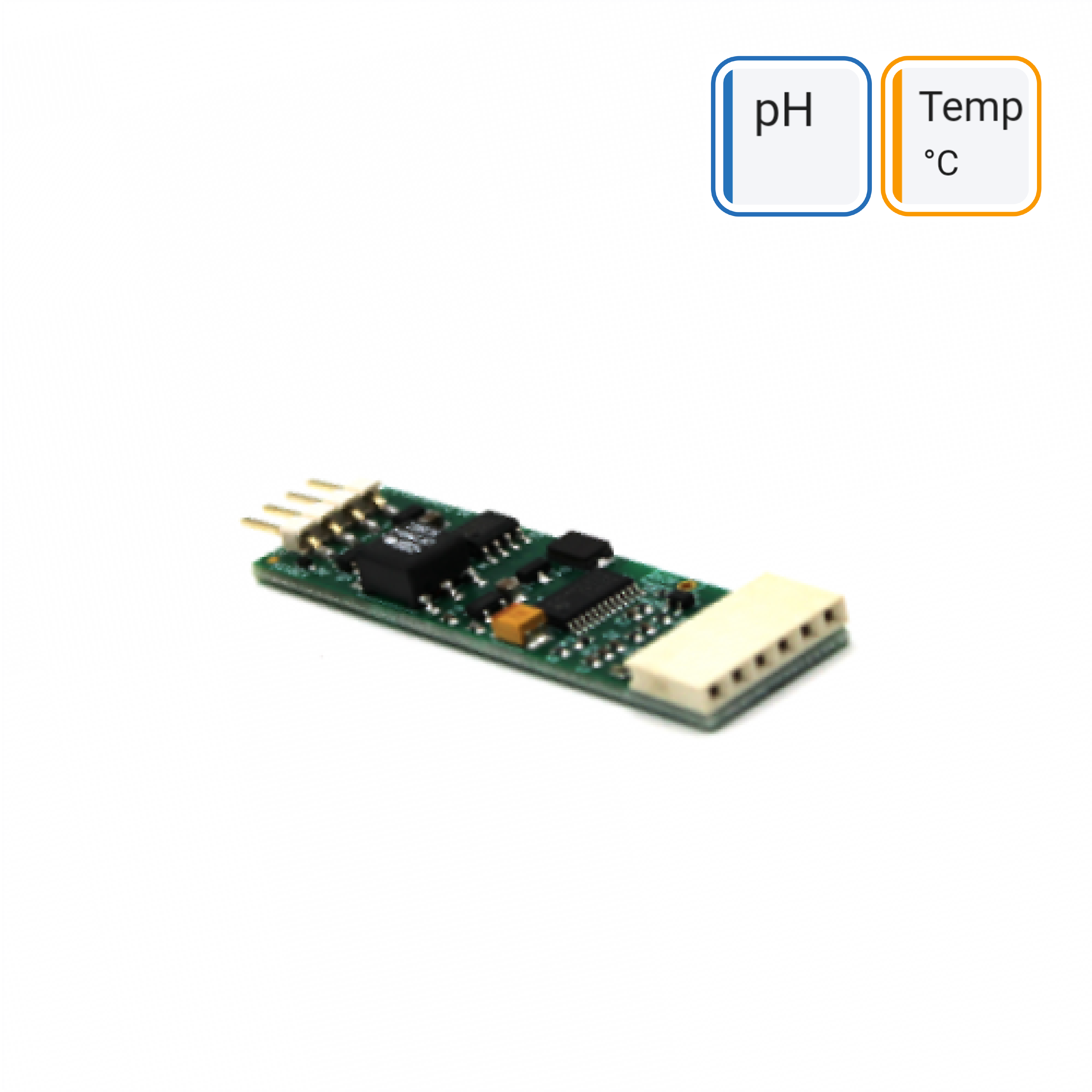

pH kit AD Converter module

The conditions for purchases, deliveries and returns are described in our Terms and Conditions.
  • Article number: A120-004
  • This Analog-Digital Converter module is optional and has to be connected to the pH kit Analog Front-end module (A120-003).
  • This extension module with microprocessor, AD Converter and galvanic isolation makes it well suited for use in embedded applications.
  • The communication with the AD Converter is based on a serial RS232 interface with a 115k2 8N1 baud rate setting. Using a standard serial interface it is possible to perform calibrations and read pH and temperature values. Application of a temperature correction algorithm to the pH signal is performed directly by the microcontroller of the AD Converter module. The 1.5kV galvanic isolation provides an extra safety barrier and prevents ground loops.
  • Use of the features of the AD Converter module require knowledge of programming serial communication in embedded applications.

Probably also good to add

120.00

Analog-Digital Converter module for the pH kit. Provides RS232 serial output when attached to the pH-kit Analog Front-end module.

Please check our technical guide before use.

You may also like…

Download Leaflet
Category: SKU: A120-004

Description

pH kit AD Converter module

120.00

Download Leaflet
pH kit AD Converter module

120.00

Download Leaflet

Wireless and durably interchangeable

Wireless and durably interchangeable, our premium pH probe enables you monitor this essential parameter in whatever application, whenever you want, wherever you are.

Frequently Asked Questions

Thanks to the ISFET technology the pH sensors are robust and can be stored dry. This has a great benefit for applications like water quality measurements in stream beds and tidal areas, where the water level changes in time and the probe will occasionally be above the water level.

The glass-free approach makes the pH also available for inline food processes and medical applications like gastro-enterology, for which any glass splinter could be fatal.

The new product line is a wireless product line. No cable and thus more flexibility. No limitation of 1 probe per meter at a maximum 1,5 meter distance anymore! The Bluetooth connection enables you to have several meters within the mobile and the probe. Unlimited numbers of probes can be connected and read out simultaneously. Additionally the features of your phone can be used: GPS, social media, cloud service, etc.

Additionally we’ll release a multisensor on the market in the near future. This probe for pH, EC and ORP can be added up to the number of probes connected to your mobile device.

The connection between the probe (/transmitter) and the mobile phone is dependent on the Bluetooth signal. We have used a powerful approach for this, enabling a distance of maximum XX meter through the air.

Let’s get connected and see whether we have a match. Please refer to sensorsolutions@wellinq.com / info@sentron.nl and we’ll contact you as soon as possible.

Besides the standard product line we are also providing contract development and contract manufacturing of sensor assemblies. More information on this is provided at Sensor Integration Services

Additional information

Categorie

Benchtop, R&D evaluation pH kit

Parameter

pH (ISFET)
